Colored Steel Wall 850mm Corrugated Steel Sheet Making Machine 15m/Min

Name: Colored Steel Wall 850mm Corrugated Steel Sheet Making Machine 15mMin
Brand: cangzhou willing
Price: 1 USD

Wholesale Colored Steel Wall 850mm Corrugated Steel Sheet Making Machine 15m/Min from china suppliers

Brand Name : cangzhou willing

Model Number : 850

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negoiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 30 sets per month

Delivery Time : 30days

Packaging Details : Main machine is nude,the computer control box is packed by plastic.

Thickness : 0.3-0.8MM

Main frame : 350 H Steel

Product name : Corrugated Steel Sheet Making Colored Steel Wall Roof Roll Forming Machine

Forming speed : 8-15m/min

Cutting accuracy : ±2 mm

Roller material : 45# Steel

Cutting type : Hydraulic Cutting

Shaft material : High Grade No.45 Forged

Contact Now

Corrugated Steel Sheet Making Colored Steel Wall Roof Roll Forming Machine

The corrugated roll forming machine is a production-type machine composed of several parts such as discharging, forming, post-forming and cutting. The colored panels produced by it have smooth and beautiful appearance, uniform paint pattern, high strength, and durability.

It has advantage of pretty appearance, durable using and so on

Equipment Detailed Parameters:

No.	Item	Description
1	Coil	Width:1000mm
2	Forming speed	8-15 m/min (not including cutting time)
3	Roller Stations	9 stations
4	Material of Roller	45# steel finish machining, plated hard chromium surface
5	Material of Main Shaft	45# steel finishing machining and then slack quench processed
6	Material of Shaft	70 mm 45#steel forged
7	Hydraulic Station Power	3 KW
8	Hydraulic Station Pressure	12.0 Mpa
9	Electrical Control System	DELTA PLC
10	Material of Cutter	GCr12
11	Driving Mode	single chain 0.6 inch
12	Material Thickness	0.3-0.8mm
13	Power Supply	380V, 60HZ, 3 PHASES
14	Cutting accuracy	±2 mm

Application

They are widely used Industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, theaters and other rooms, walls and roofs.

Product Tags:

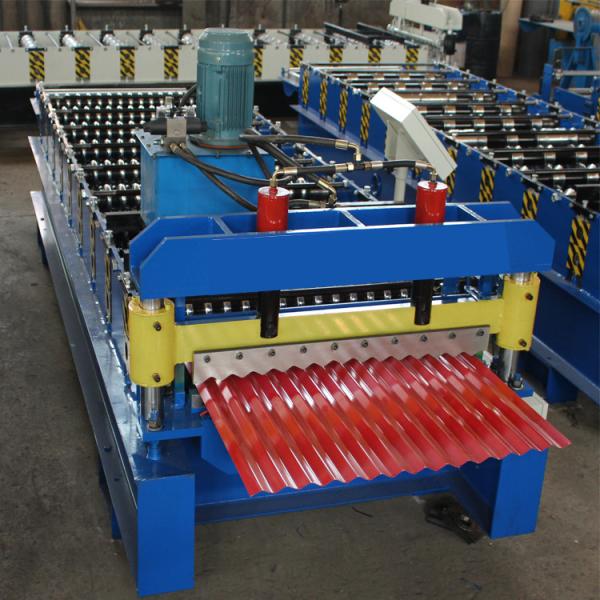

Colored Steel Wall 850mm Corrugated Steel Sheet Making Machine 15m/Min Images
